Fusion Solution

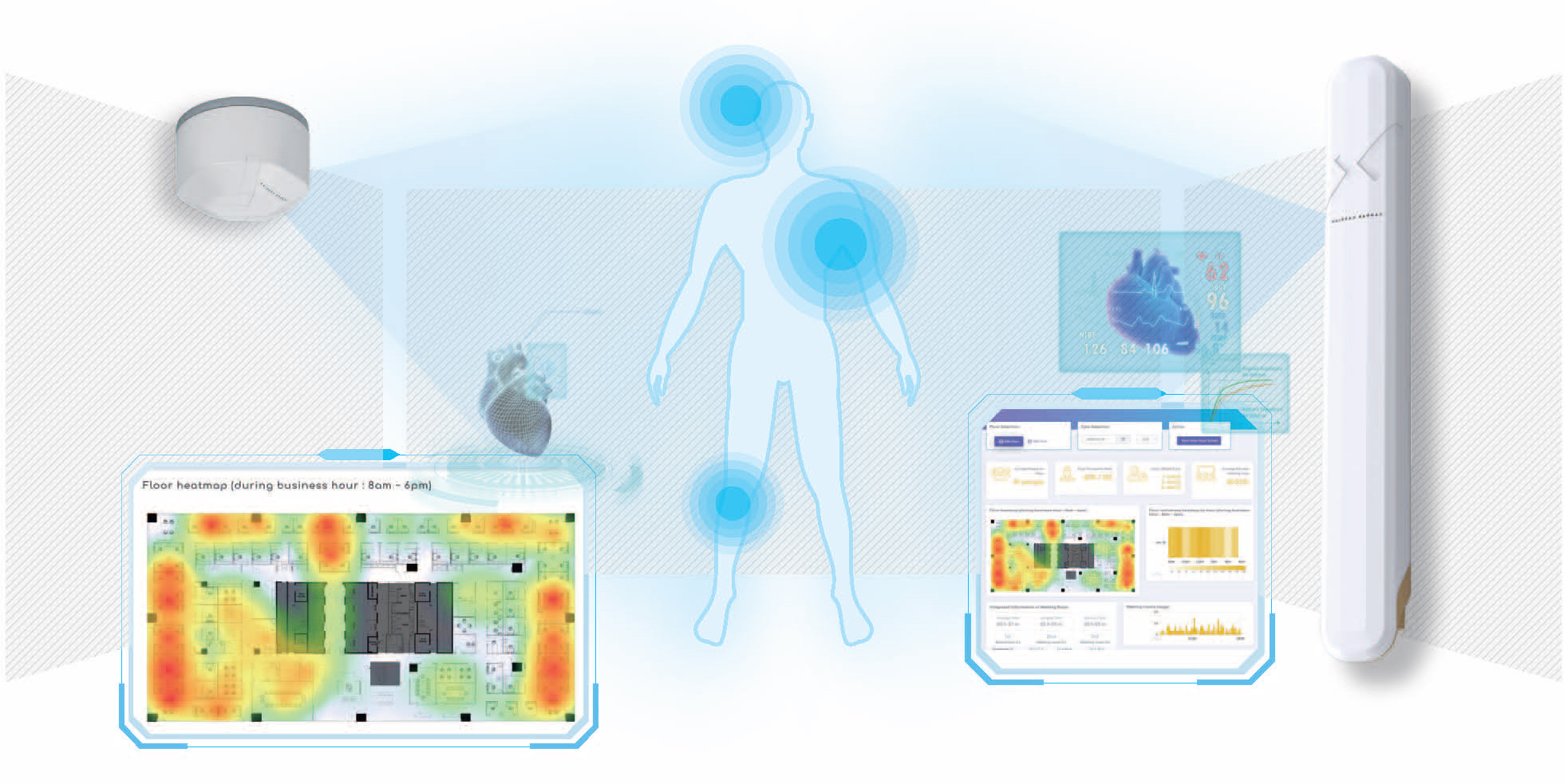

  • The latest solution is designed to check the health condition by wirelessly detecting the customer's bio-signals that convert the vibrations generated in the human body into data equipped with a micro-vibration pattern recognition algorithm.

    01Principle of Fusion Sensor

    Checking of security and biometric status through fusion sensor

    Through the HDS fusion solution based on the latest UWB (Ultra Wide Band), it detects intrusion, occupancy, and others. It also detects the customers to ensure safety.

    Principle of Fusion Sensor
    With the IR-UWB (Impulse-Radio Ultra Wideband) method applied to the UDS fusion solution, it emits an ultra-short impulse signal to measure the distance and relative speed to the target by using Time-of-Arrival (TOA).
    Principle of Fusion Sensor
    IR-UWB technology is designed to supplement the existing camera-based indoor monitoring system by using precise location recognition and tracking functions that can check below several tens of centimeters indoors and outdoors with low cost and low power. It can be used in various areas for radar for viewing the wall, measuring high density positions, penetrating grounds and detecting non-contact bio signals.

    02Features of Fusion Sensor

    • No Weather Impact

      Unaffected by weather, such as temperature, humidity, fog, rain, and snow

    • No CCTV

      No elements that infringe on privacy (GDPR complied)

    • No lighting

      Works in the dark without any lighting or in smoke with no visibility

    • Max 10m

      Covers up to 10 m (32 ft) per sensor

    • Safe from electromagnetic wave

      40 times less power than home Wi-Fi routers (6.5 to 8 GHz)

    • Wi-Fi / 4G / NB-IOT

      Real-time monitoring via web
      dashboard & mobile app

    Comparison of Fusion sensor vs. conventional sensor

    Classification Detection method Environmental obstacles Micro movement Stationary object recognition Detection during sleep False positive rate
    Infrared sensor / Ultrasonic sensor    		 Heat difference / reflected wave Light, wind, cloak x x x 0.1%
    HDS fusion sensor    		 Micro vibration X o o o 0.01%

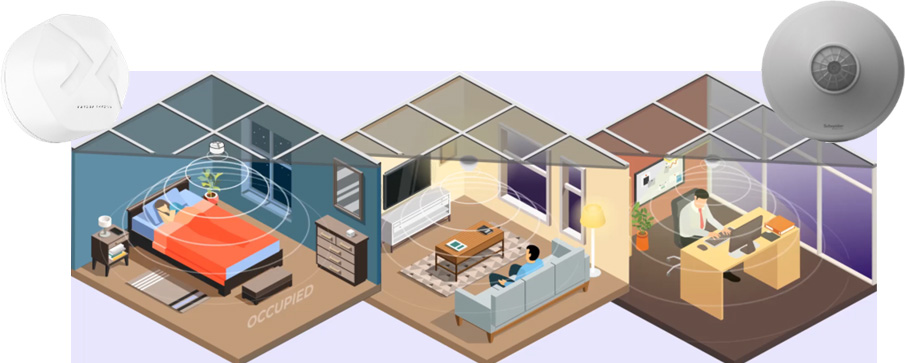

    03Importance of Fusion Sensor

    • Since the motion sensor only detects big movements, we’ve experienced having to shake our arms to turn the lights on.
    • Al set absence detection timers are between 15 and 45 minutes at corporate offices, hotels, and hospitals.
    • This means that if someone vacates a designated space (e.g. private offices), the lighting, heating and cooling systems will continue to operate for an additional 15 to 45 minutes.
    • Reducing this time may result in complaints by turning off the lights even when occupants are still in the building.
    • The detection of the fusion sensor is made through a human breathing signal.
    • If they are in the room, breathing and absence detection takes place in seconds instead of every 15 to 45 minutes.

    • 01Fusion Sensor

      Detection through microscopic vibrations (biological signals) of the body 99.9% accuracy

    • 02Ultrasonic Sensor

      Detection via microphone sound (sensitive)High false alarm rate

    • 03PIR Motion Sensor

      Detection through large movementsHigh false alarm rate

    Security & Fire Utilizing of Space Energy Saving
    Security & Fire
    • Since the sensor does not have a camera or microphone, it protects your privacy.
    • The sensor can detect even when the room is full of smoke regardless of lighting conditions.
    Utilizing of Space
    • 50% of the offices are underutilized.
    • 50% of seats in meeting rooms ofor 8 or more are unused.
    Energy Saving
    • 30% of energy is wasted in commercial buildings.
    • 30-45% of energy use of a building is used for heating and cooling.
    • Lighting accounts for 35% of energy use.
    • 75% of desktop computer power consumption occurs when there’s no one is in front of the computer.

    04Utilization of Fusion Sensor

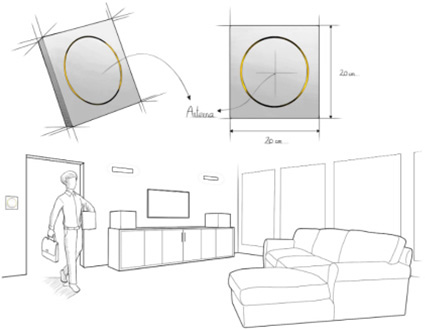

    01 Lighting Control

    Lighting Control
    A's smart home setup and occupancy sensors are placed around the house to detect humans and control automated lighting. As long as the sensor detects the presence of a person, it can automatically turn on and keep the room lights on. This helps reduce home energy costs and increase your home comfort.

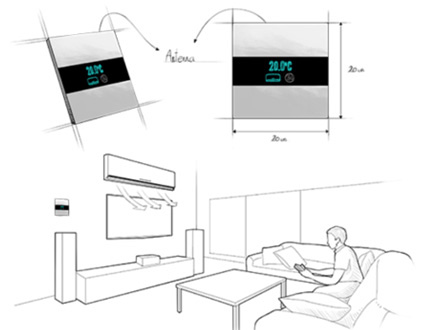

    02 HVAC Control

    HVAC Control
    With our home automation, the HVAC system can be controlled turned on when a sensor detects the presence of a room. HVAC automation helps make homes greener by increasing user convenience and reducing energy costs.

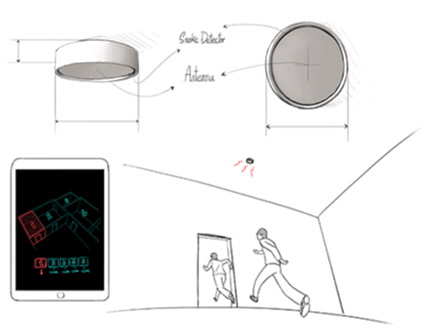

    03 Evacuation Monitoring

    Evacuation Monitoring
    It can be used in monitoring applications of a smart building, especially in emergency settings. It can detect which room is being used, allowing emergency services to conduct a faster and safer evacuation.

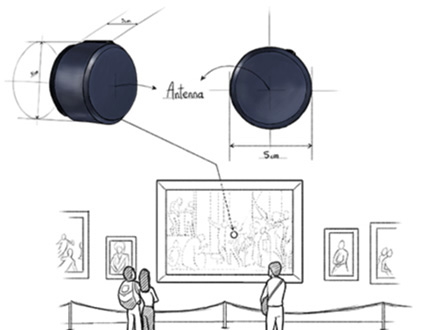

    04 Security

    Security
    In a museum or art gallery where sensors can be placed behind valuable artwork, it can alert observers who are too close. All museums take various security measures, but these sensors can always protect the collections, avoid potential damage, and prevent art theft with its ‘Museum Security’ feature.

    05Examples of Use of Fusion Sensors

    Examples of Facility for HDS Air Sterilizer with Fusion Sensors

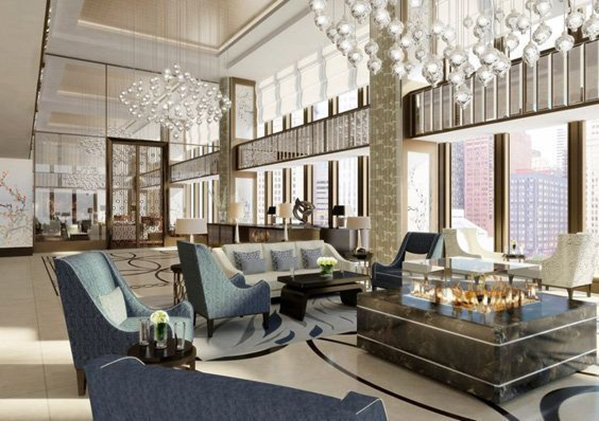

    Common Facilities

    Common Facilities
    • Automatically operates an air sterilizer according to the data acquired through the fusion sensor
    • Provides sterilized and purified air in common areas such as hotel lobbies, restaurants, and lounges

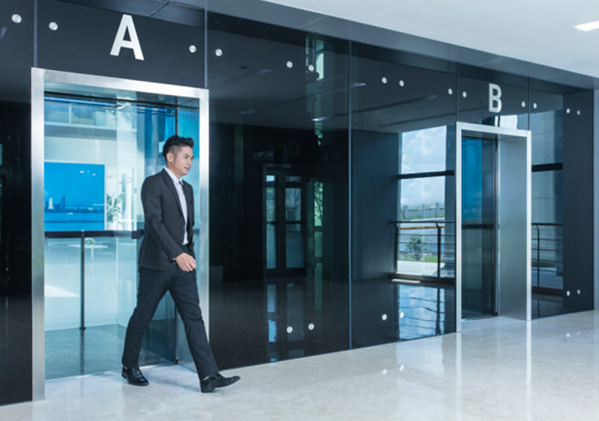

    Elevator

    Elevator
    • Can be used if there is an elevator in places such as hotels, airports, office buildings, and shopping malls
    • Checks the empty space with fusion sensors when the door is closed and sterilizes the air in the elevator before the door is open again

    Guest Room

    Guest Room
    • When a vacancy is detected through the fusion sensor, operates automatically to provide sterilized and purified air to the guest room
    • Achieves energy savings by controlling lighting, heating and cooling facilities, etc

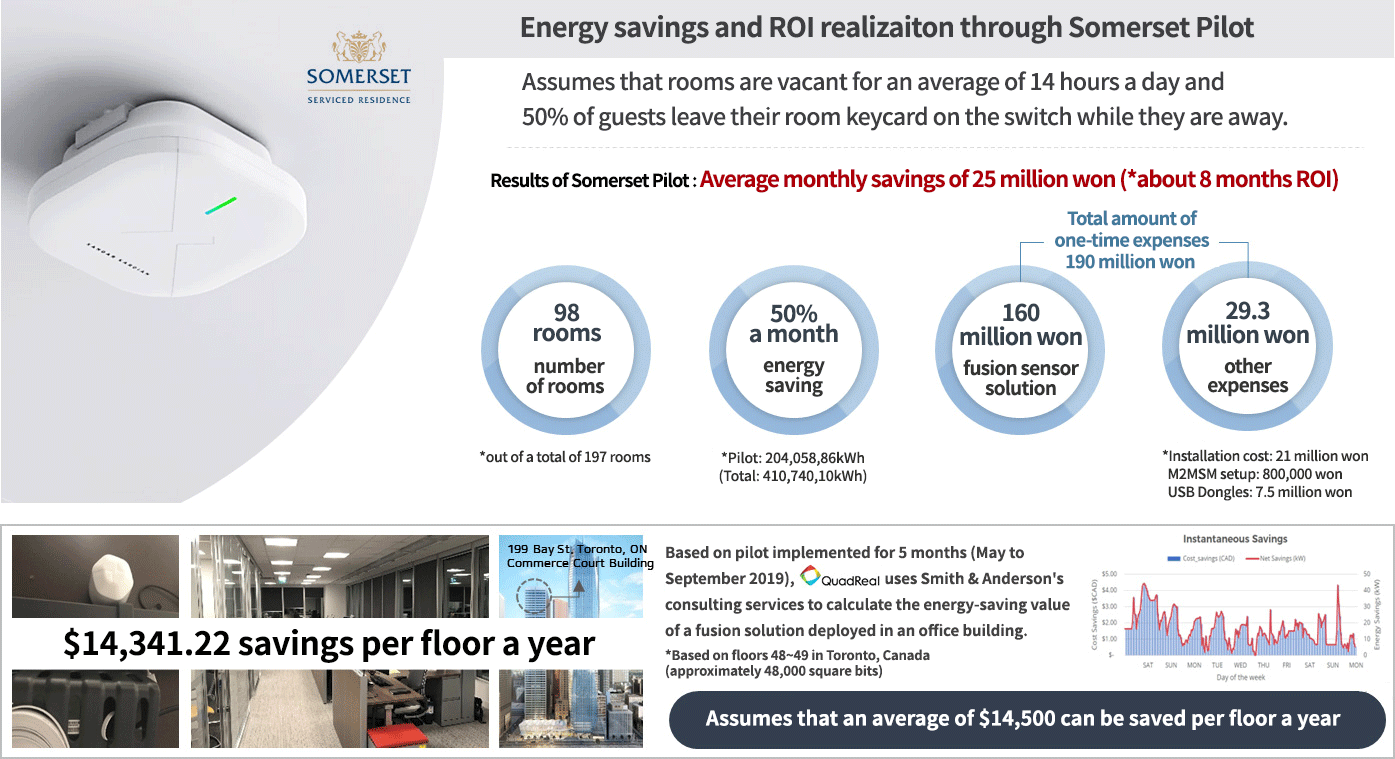

    06Fusion Sensor Energy Saving

    Energy savings and ROI realizaiton through Somerset Pilot

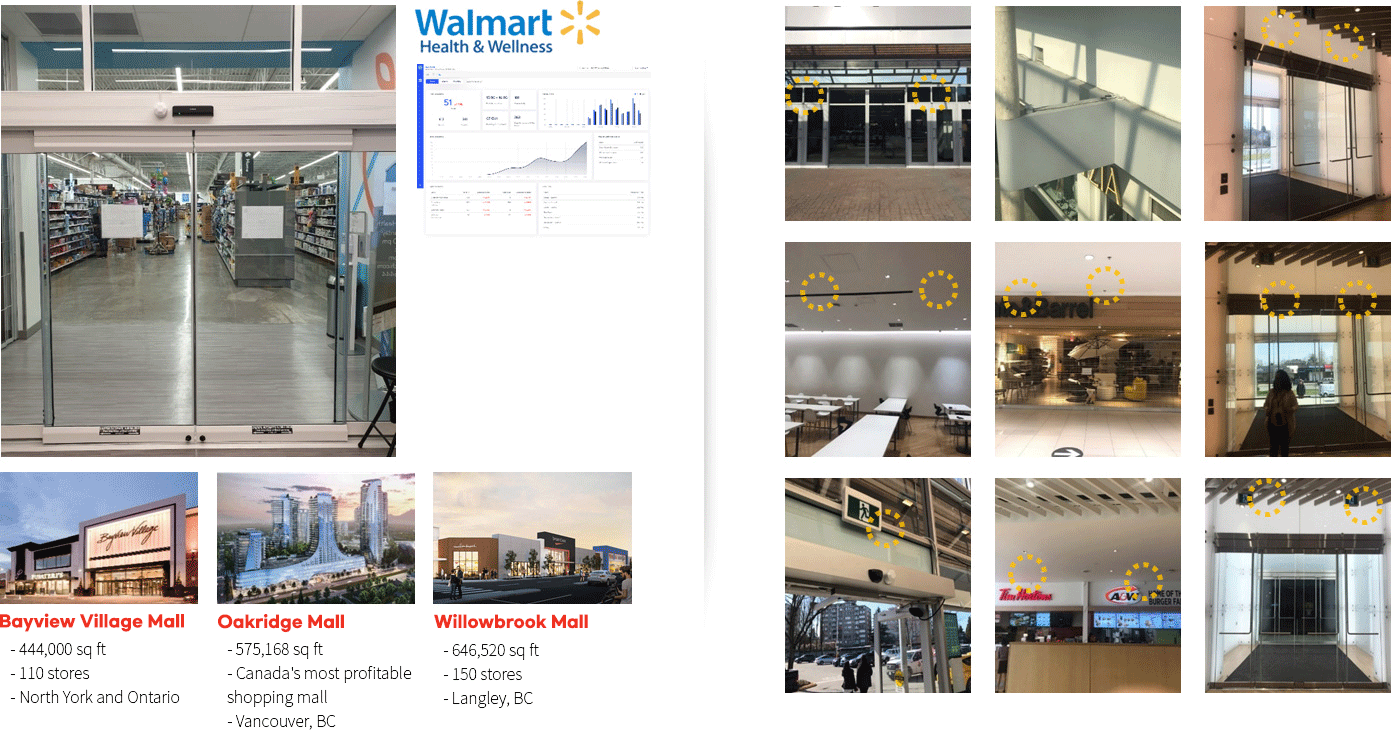

    07Reference of Fusion Sensor

    The first and only radar-based fusion sensor is being used worldwide in offices, buildings, marts and shopping malls.

    Reference of Fusion Sensor

  • The state-of-the-art service solution combining physical security with smart environment and healthcare provides customers with physical safety and healthcare.

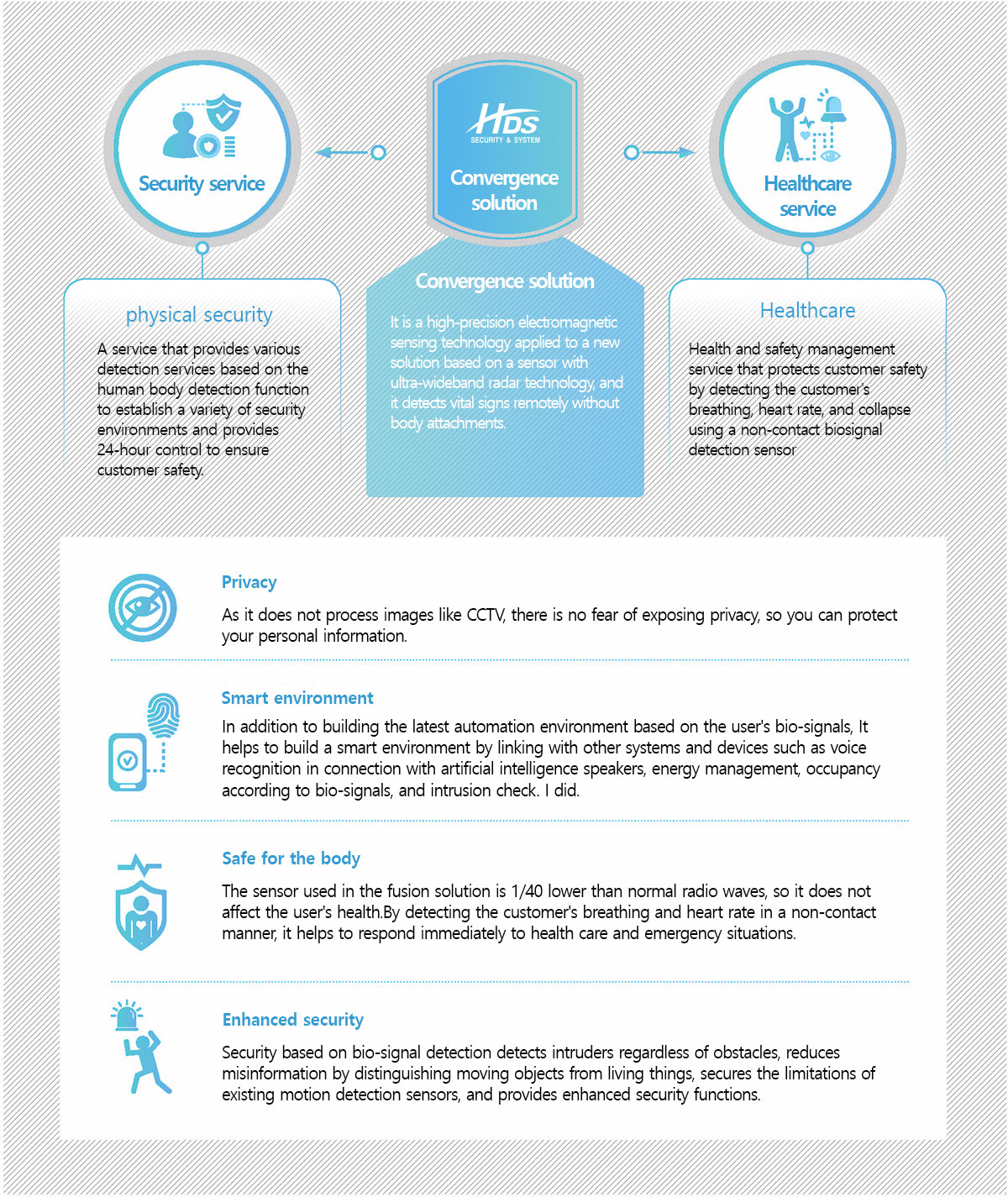

    Fusion Solution Core Technology : Security Service, Healthcare Service

    HDS Fusion Solution Service

    Based on physical security such as intrusion detection and access confirmation, it provides the latest healthcare service that wirelessly detects customers' bio signals and services to create a smart environment and offers a variety of services by supplementing the shortcomings of existing security sensors.

    • service1

      Safety Service

      It protects our customers' assets and takes care of their health with our safe and secure services at all times.

    • service2

      24-hour Control Service

      Not only status of physical security but also physical condition of customers are monitored to respond immediately to problems.

    • service3

      Customized Data

      The accumulated data is encrypted with HDS's algorithm and processed into customer-specific data so that customers can check them over the Internet.

    • service4

      Relief Solution

      For smart homes, offices, and cities, it provides flexible scalability to build an integrated safety solution by linking with other systems.

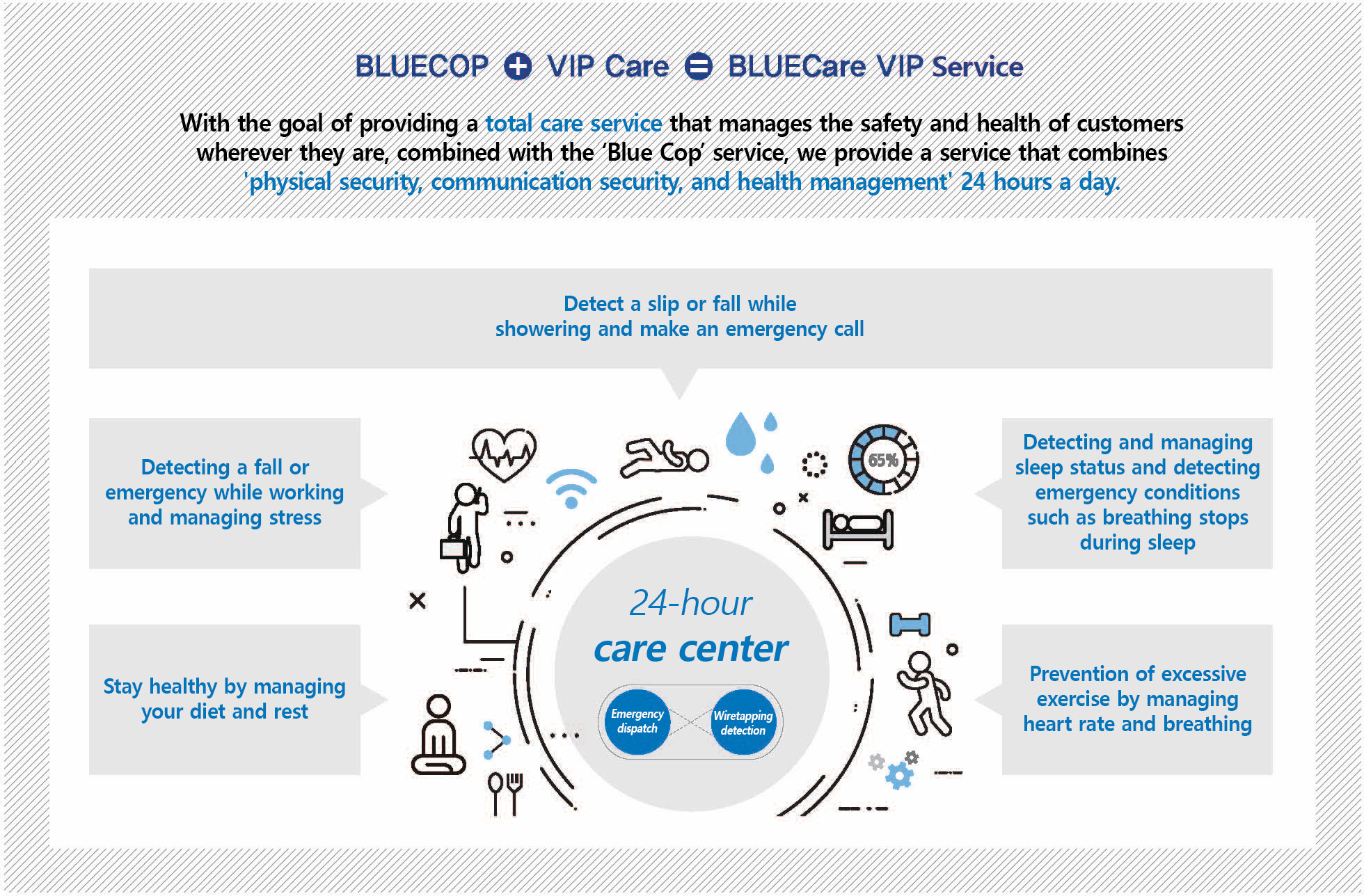

    Special service for VIP customers

    Special service for VIP customers

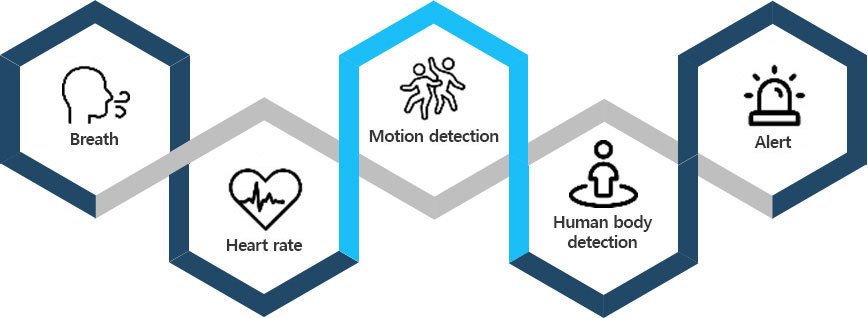

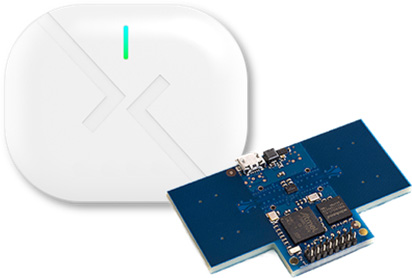

    HDS Fusion Sensor

    HDS's fusion sensor is the latest solution that converts millions of vibrations generated in the human body into data with our micro-vibration pattern recognition algorithm designed to wirelessly detect the customer's bio signals to check their health even without body attachments.

    HDS Fusion Sensor

    Sleep management

    • Sleep apnea and respiratory
      depression analysis
    • Step-by-step sleep state detection
    • Measure AHI with 86% accuracy

    Fall detection

    • Detects more than 96% of the user's vital signs with an accuracy of 4 steps: wake up, biosignal increase, movement, and sitting
    • Continuous monitoring triggers fall detection alarm

    Heart rate breathing check

    • Breathing and heart rate monitoring
    • 95% accurate measurement compared to medical ECG devices

    Fusion Sensor Features

    Application of the latest precision radar technology

    • Ultra-precise sensing technology to detect breathing vibration and blood flow
    • Built-in real-time detection analysis algorithm

    Daily health management with bio-signal detection

    • Health management based on accumulated data
    • 24hours 365days biosignal detection

    Convergence service

    • Alerts are sent to family members or guardians when biosignal abnormalities occur
    • 95% accuracy compared to hospital medical devices
