01Overview of Integrated SI Solution

Integrated SI solution for monitoring and managing the status of the entire facility operations
Interwork each system, share information, control and monitor all areas in an integrated manner by integrating operations data about firefighting, power, lighting, equipment, EV, ES, CCTV and others
Integrated operating system that supports the controller to quickly determine and respond to situations in case of emergency

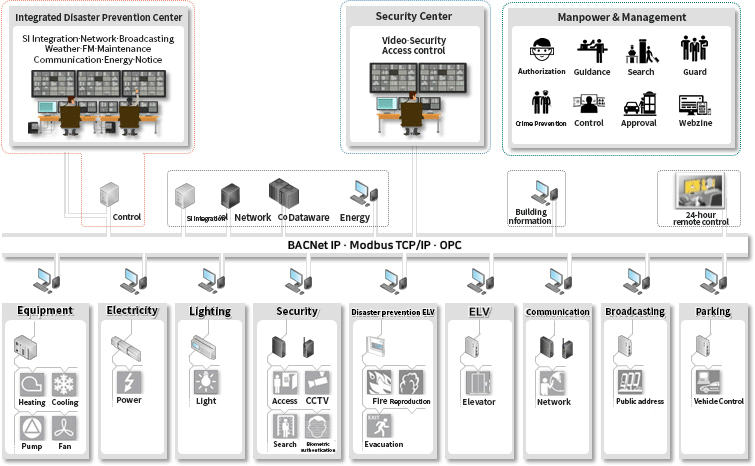

System for monitoring and managing the operations of the entire facility
Interwork each system, share information, control and monitor all areas in an integrated manner by integrating operations data about firefighting, power, lighting, equipment, EV, ES, CCTV and others
Integrated operating system that supports the controller to quickly determine and respond to situations in case of emergency

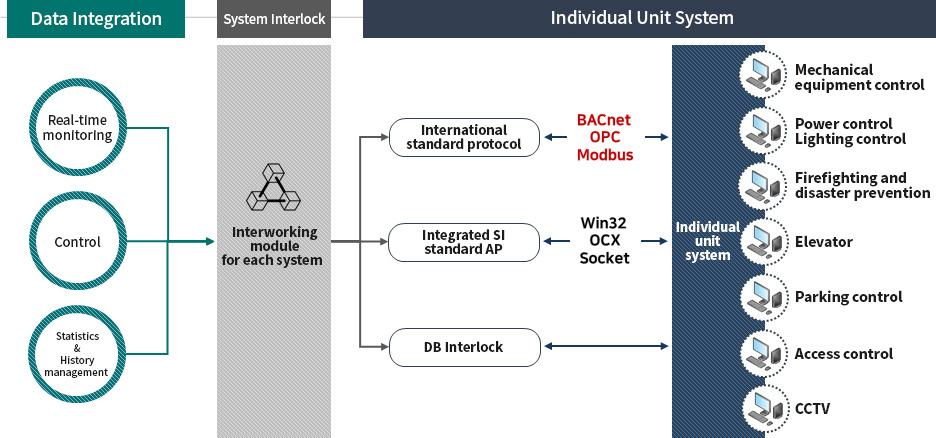

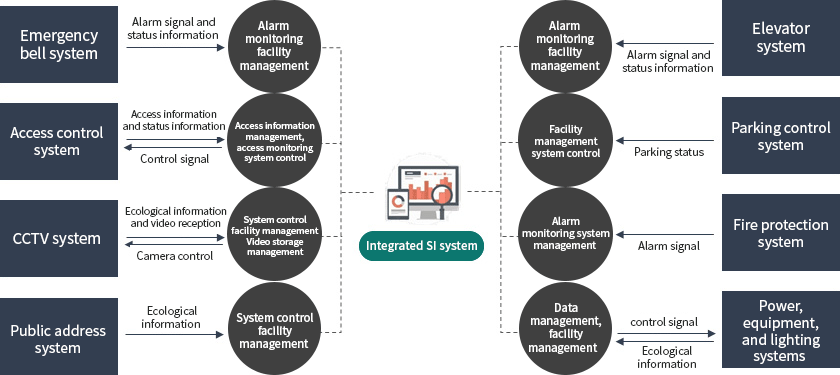

Provides an integration function through interworking with individual unit systems and standardizing data by supporting international standard protocols and providing standard APIs
Provides the location and video data to the operator in case of an emergency by integrating and managing each data of the system in HDS and integrating alarm signals between systems
Transmits control signals set for each system to distribute situations and control each equipment in order to respond to situations

Features of Solution

Develops in-house solution based on the source technology
Design products centered on convenience, scalability, and stability of use – Product design centered on convenience, scalability, and stability of use
Control screen by using object-based design tools
Connect with the external systems and easy maintenance
Establish various alarm systems
Apply the technology designed to minimize the network loading for multi-channel video display
Integrated management function between multiple servers and easy camera management
Security management to prepare for video file leakage

Applied Technology and Possessed Technology

Real-time streaming technology for transmitting and receiving real-time audio and video (RTP, TRCP, RTSP, H, 264, etc.)
Signaling protocol related technology for interworking with IP exchanges and phones (SIP, H323)
High-speed and large-capacity data communication processing technology
IP-based notification broadcasting and command phone (IP MCU)
Various hardware control technology (Analog/Digital/Counter, etc.) and IP camera control technology (ONVIF)
Failure detection, automatic recovery, clustering between servers, and large-capacity server development

Interlocks with individual unit systems through the international standard interlocking module, BACnet, OPC, and Modbus (Built-in modules)
Build an integrated SI by providing an integrated SI standard API to individual unit systems that do not support international standards

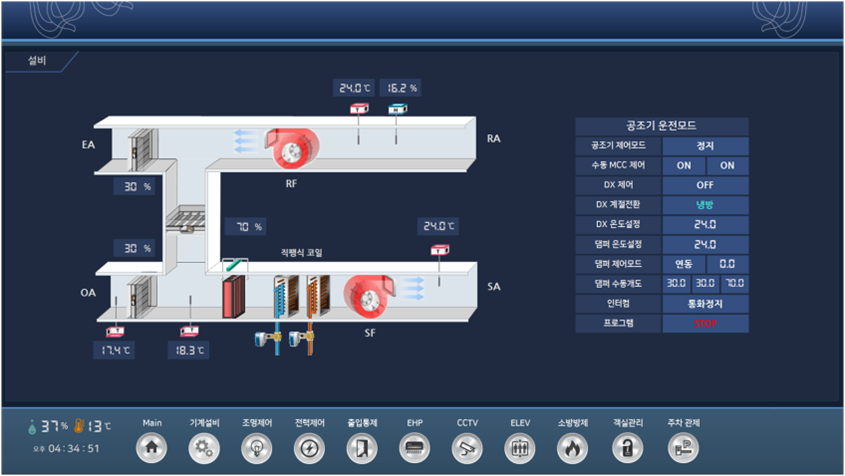

Facility Screen

Expresses important control points of equipment control

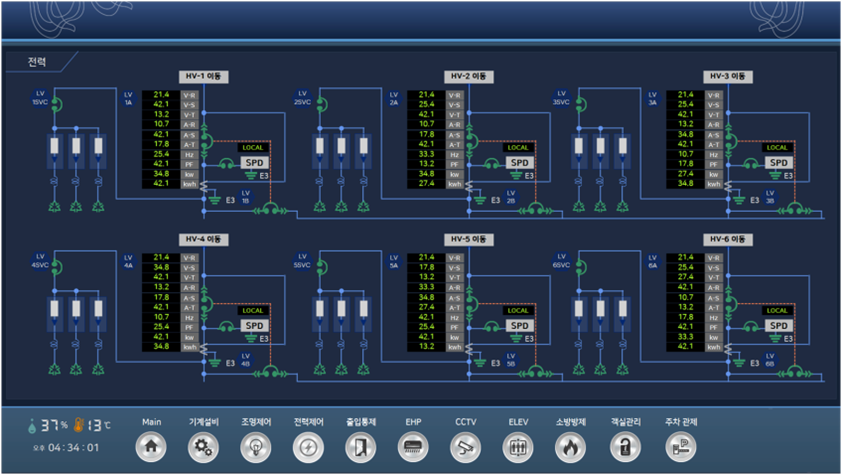

Power Screen

Expresses important control points of power control

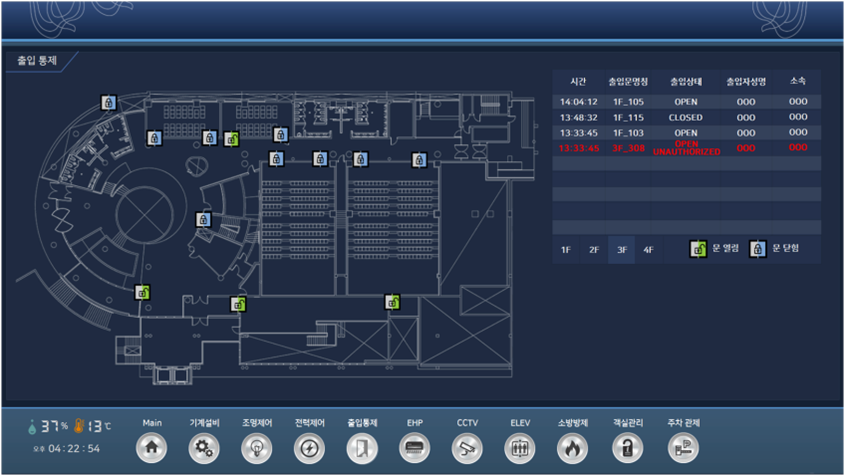

Access Control Screen

By displaying the status of ACU registered to access control, a pop-up alarm occurs in case when there’s unauthorized access.

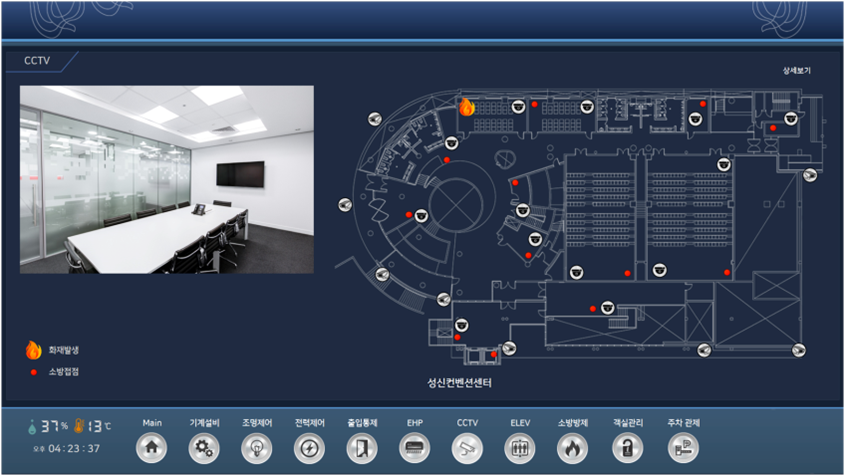

CCTV Fire Screen

It displays CCTV screen and fire location according to firefighting interlocking.

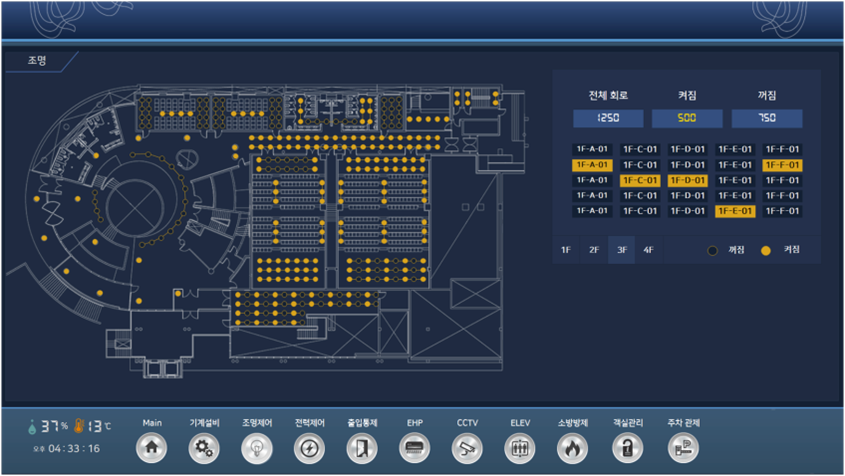

Lightening Screen

It displays the ON/OFF status of lighting for each floor and area as well as the numerical value of the entire circuit on the screen.

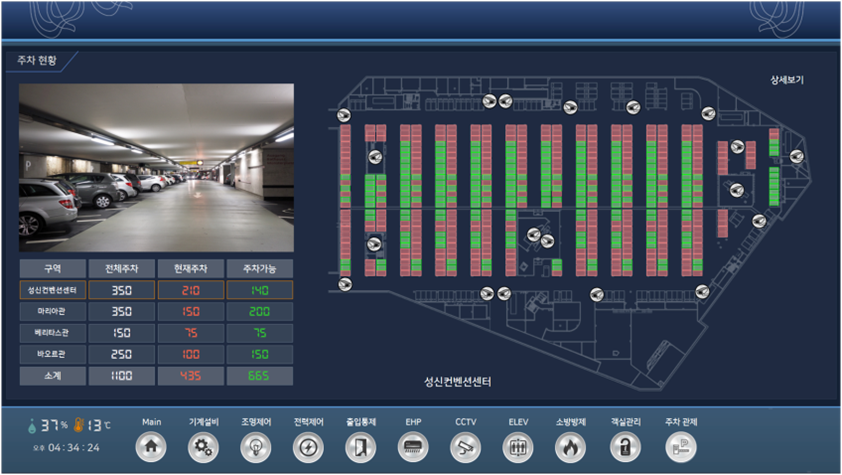

Parking Screen

The parking status for each zone and the parking status of the drawing are displayed. In case of emergency, the CCTV video of the location is displayed.
Main Screen

It shows the division of each subsystem and important control points of the subsystem.

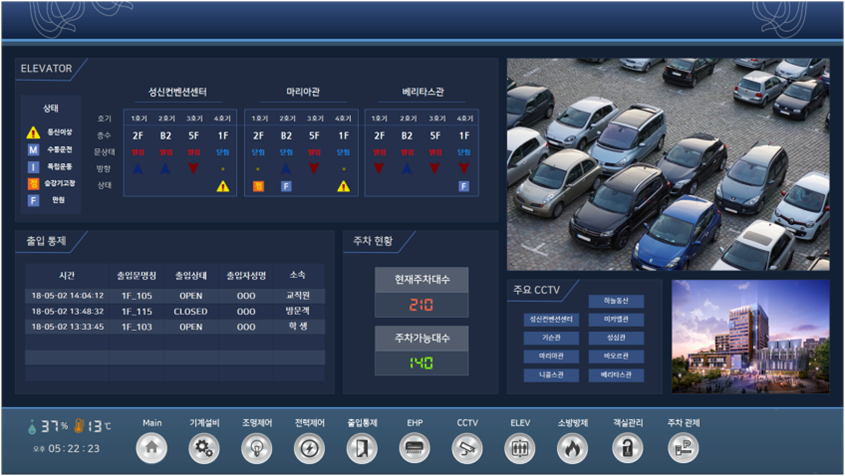

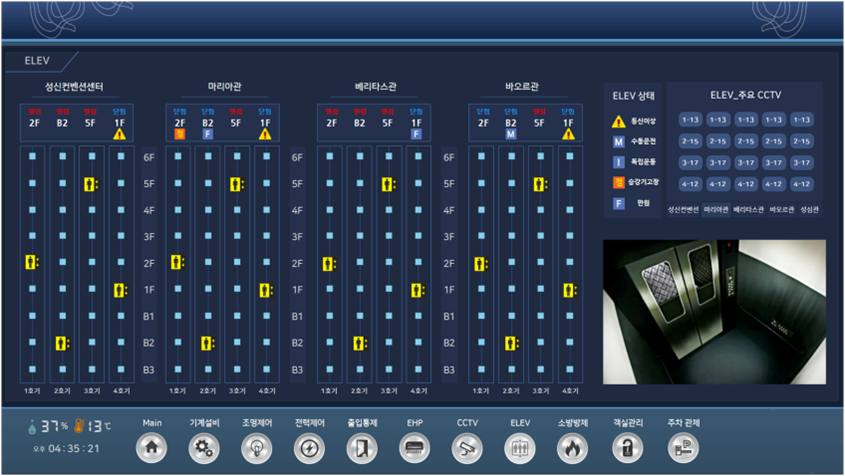

Elevator Screen

It displays the real-time status of the operations of the elevator and the interlock internal camera. In case of emergency, the camera is displayed.

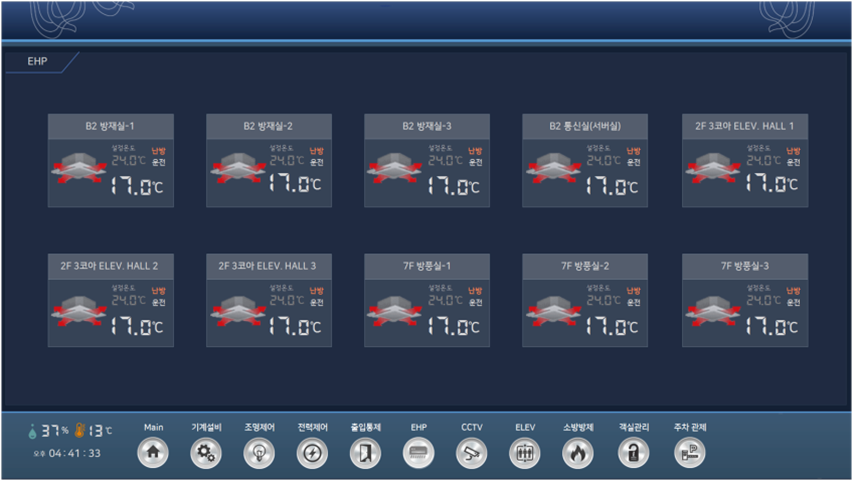

EHP Screen

It shows the current temperature and operation status of temperature for each location.

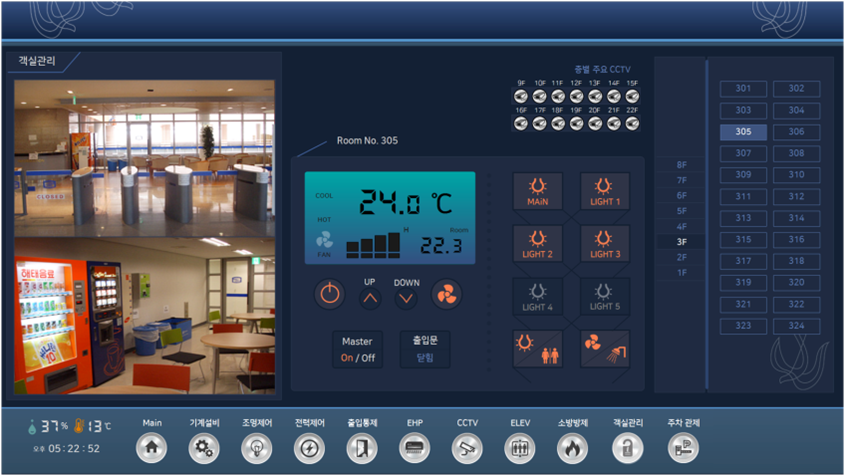

Room Management Screen

It provides the status of each room and main internal CCTV screens.
